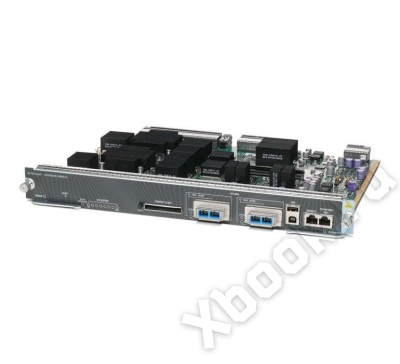

Модуль супервизора Cisco WS-X45-SUP6L-E/2 в Самаре

Vendor Code	WS-X45-SUP6L-E/2

General
Device Type	Control processor
Processor / Memory / Storage
RAM	512 MB ( 1 GB max ) SDRAM
Flash Memory	128 MB
Networking
Form Factor	Plug-in module
Connectivity Technology	Wired
Data Link Protocol	Gigabit Ethernet, 10 Gigabit Ethernet
Network / Transport Protocol	NTP, ICMP/IP, BOOTP, DHCP
Routing Protocol	OSPF, RIP, BGP-4, RIP-2, BGP, EIGRP, HSRP, IGMP, DVMRP, VRRP, PIM-SM, GRE, OSPFv3, PIM-SSM, Multiprotocol BGP, MSDP, static IPv4 routing, static IPv6 routing, RIPng, MLDv2, MLD
Remote Management Protocol	SNMP 1, SNMP 2, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, TFTP, SSH, SSH-2
Performance	Switching capacity : 280 GbpsIPv4 routing : 225 MppsIPv6 routing : 110 Mpps
Capacity	QoS hardware entries : 32000Security services entries : 32000Hardware forwarding entries : 57000IPv4 routes : 57000IPv6 routes : 30000MAC addresses : 55000Virtual interfaces (VLANs) : 4096
Status Indicators	Link activity, bandwidth utilization %, link OK, status
Features	Hot swap module replacement, auto-negotiation, VLAN support, IGMP snooping, Broadcast Storm Control, IPv6 support, Multicast Storm Control, Stateful switchover (SSO), Per-VLAN Spanning Tree (PVST), DHCP snooping, Dynamic Trunking Protocol (DTP) support, Access Control List (ACL) support, Quality of Service (QoS), Multicast Suppression, Jumbo Frames support, DHCP server, Virtual Route Forwarding-Lite (VRF-Lite), MLD snooping, Per-VLAN Spanning Tree Plus (PVST+)
Authentication Method	Secure Shell (SSH), RADIUS, TACACS+, Secure Shell v.2 (SSH2)
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ab (LLDP)
Communications
Supported Flash Memory Cards	CompactFlash Card
Expansion / Connectivity
Expansion Slots	2 (total) / 0 (free) x X24 (total) / 4 (free) x SFP (mini-GBIC)
Interfaces	1 x management - RJ-451 x 1000Base-T (management) - RJ-45
Compatible Slots	1 x expansion slot
Miscellaneous
Compliant Standards	FCC Class A certified, CISPR 22 Class A, EN 60950, EN 61000-3-2, EN55022, VCCI Class A ITE, IEC 60950, EN 61000-3-3, EN55024, EN55022 Class A, UL 60950, CSA 22.2 No. 60950, ACA TS001, AS/NZS 3260, ICES-003 Class A, FCC CFR47 Part 15
Power
Power Over Ethernet (PoE) Supported	PoE
Environmental Parameters
Min Operating Temperature	32 °F
Max Operating Temperature	104 °F
Humidity Range Operating	10 - 90%
Compatibility Information
Designed For	Cisco Catalyst 4503-E, 4503-E Data Bundle, 4503-E PoE Bundle, 4506-E, 4506-E PoE GE Bundle, 4507R-E, 4507R-E Data Bundle, 4507R-E PoE Bundle

General

Device Type

Control processor

Processor / Memory / Storage

RAM

512 MB ( 1 GB max ) SDRAM

Flash Memory

128 MB

Networking

Form Factor

Plug-in module

Connectivity Technology

Wired

Data Link Protocol

Gigabit Ethernet, 10 Gigabit Ethernet

Network / Transport Protocol

NTP, ICMP/IP, BOOTP, DHCP

Routing Protocol

OSPF, RIP, BGP-4, RIP-2, BGP, EIGRP, HSRP, IGMP, DVMRP, VRRP, PIM-SM, GRE, OSPFv3, PIM-SSM, Multiprotocol BGP, MSDP, static IPv4 routing, static IPv6 routing, RIPng, MLDv2, MLD

Remote Management Protocol

SNMP 1, SNMP 2, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, TFTP, SSH, SSH-2

Performance

Switching capacity : 280 GbpsIPv4 routing : 225 MppsIPv6 routing : 110 Mpps

Capacity

QoS hardware entries : 32000Security services entries : 32000Hardware forwarding entries : 57000IPv4 routes : 57000IPv6 routes : 30000MAC addresses : 55000Virtual interfaces (VLANs) : 4096

Status Indicators

Link activity, bandwidth utilization %, link OK, status

Features

Hot swap module replacement, auto-negotiation, VLAN support, IGMP snooping, Broadcast Storm Control, IPv6 support, Multicast Storm Control, Stateful switchover (SSO), Per-VLAN Spanning Tree (PVST), DHCP snooping, Dynamic Trunking Protocol (DTP) support, Access Control List (ACL) support, Quality of Service (QoS), Multicast Suppression, Jumbo Frames support, DHCP server, Virtual Route Forwarding-Lite (VRF-Lite), MLD snooping, Per-VLAN Spanning Tree Plus (PVST+)

Authentication Method

Secure Shell (SSH), RADIUS, TACACS+, Secure Shell v.2 (SSH2)

Compliant Standards

IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ab (LLDP)

Communications

Supported Flash Memory Cards

CompactFlash Card

Expansion / Connectivity

Expansion Slots

2 (total) / 0 (free) x X24 (total) / 4 (free) x SFP (mini-GBIC)

Interfaces

1 x management - RJ-451 x 1000Base-T (management) - RJ-45

Compatible Slots

1 x expansion slot

Miscellaneous

Compliant Standards

FCC Class A certified, CISPR 22 Class A, EN 60950, EN 61000-3-2, EN55022, VCCI Class A ITE, IEC 60950, EN 61000-3-3, EN55024, EN55022 Class A, UL 60950, CSA 22.2 No. 60950, ACA TS001, AS/NZS 3260, ICES-003 Class A, FCC CFR47 Part 15

Power

Power Over Ethernet (PoE) Supported

PoE

Environmental Parameters

Min Operating Temperature

32 °F

Max Operating Temperature

104 °F

Humidity Range Operating

10 - 90%

Compatibility Information

Designed For
