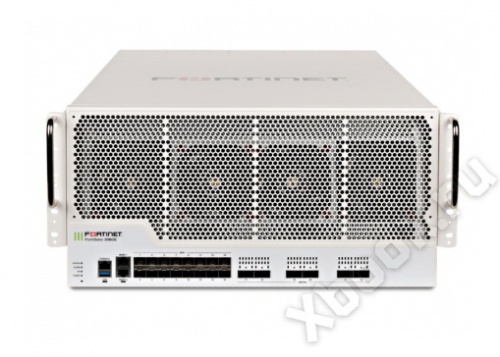

UTM-комплект FG-3960E с подпиской 24x7 FG-3960E-BDL-950-12 в Самаре

Vendor Code	FG-3960E-BDL-950-12

Model	FG-3960E /-DC
Interfaces and Modules
40/100 GE QSFP+/QSFP28 Slots	6
10 GE SFP+ Slots	16
GE RJ45 Management Ports	2
USB Ports	1
Console Port	1
Internal Storage	–
Included Transceivers	2x SFP+ (SR 10 GE)
System Performance and Capacity
Firewall Throughput (1518 / 512 / 64 byte, UDP)	1.05 Tbps / 1.05 Tbps / 620 / 610 / 370 Gbps 680 Gbps
Firewall Latency (64 byte, UDP)	3 ?s
Firewall Throughput (Packet per Second)	555 Mpps
Concurrent Sessions (TCP)	160 Million
New Sessions/Sec (TCP)	550,000
Firewall Policies	200,000
IPsec VPN Throughput (512 byte)	280 Gbps
Gateway-to-Gateway IPsec VPN Tunnels	40,000
Client-to-Gateway IPsec VPN Tunnels	200,000
SSL-VPN Throughput	9 Gbps
Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode)	30,000
SSL Inspection Throughput (IPS, HTTP)	30 Gbps
Application Control Throughput (HTTP 64K)	40 Gbps
CAPWAP Throughput (1444 byte, UDP)	13.5 Gbps
Virtual Domains (Default / Maximum)	10 / 500
Maximum Number of Switches Supported	256
Maximum Number of FortiAPs (Total / Tunnel Mode)	4,096 / 1,024
Maximum Number of FortiTokens	5,000
Maximum Number of Registered FortiClients	100,000
High Availability Configurations	Active / Active, Active / Passive, Clustering
System Performance — Optimal Traffic Mix
IPS Throughput	80 Gbps
System Performance — Enterprise Traffic Mix
IPS Throughput	30 Gbps
Dimensions and Power
Height x Width x Length (inches)	8.8 x 17.2 x 27.3
Height x Width x Length (mm)	222 x 437 x 695
Weight	100.8 lbs (45.8 kg)
Form Factor	5 RU
AC Power Supply	100–240V AC, 50–60 Hz
DC Power Supply (FG-3980E-DC, FG-3960E-DC)	-48–60V
Power Consumption (Average / Maximum)	960 / 2110 W
Current (Maximum)	21.1A@100V, 8.8A@240V
Heat Dissipation	7,200 BTU/h
Redundant Power Supplies	Yes, Hot Swappable
Operating Environment and Certifications
Operating Temperature	32–104°F (0–40°C)
Storage Temperature	-31–158°F (-35–70°C)
Humidity	10–90% non-condensing
Noise Level	63 dBA
Operating Altitude	Up to 7,400 ft (2,250 m)
Compliance	FCC Part 15 Class A, C-Tick, VCCI, CE, UL/cUL, CB
Certifications	ICSA Labs: Firewall, IPsec, IPS, Antivirus, SSL-VPN; USGv6/IPv6
NEBS Certified	–

Model

FG-3960E /-DC

Interfaces and Modules

40/100 GE QSFP+/QSFP28 Slots

10 GE SFP+ Slots

GE RJ45 Management Ports

USB Ports

Console Port

Internal Storage

–

Included Transceivers

2x SFP+ (SR 10 GE)

System Performance and Capacity

Firewall Throughput
(1518 / 512 / 64 byte, UDP)

1.05 Tbps / 1.05 Tbps / 620 / 610 / 370 Gbps 680 Gbps

Firewall Latency (64 byte, UDP)

3 ?s

Firewall Throughput (Packet per Second)

555 Mpps

Concurrent Sessions (TCP)

160 Million

New Sessions/Sec (TCP)

550,000

Firewall Policies

200,000

IPsec VPN Throughput (512 byte)

280 Gbps

Gateway-to-Gateway IPsec VPN Tunnels

40,000

Client-to-Gateway IPsec VPN Tunnels

200,000

SSL-VPN Throughput

9 Gbps

Concurrent SSL-VPN Users
(Recommended Maximum, Tunnel Mode)

30,000

SSL Inspection Throughput (IPS, HTTP)

30 Gbps

Application Control Throughput (HTTP 64K)

40 Gbps

CAPWAP Throughput (1444 byte, UDP)

13.5 Gbps

Virtual Domains (Default / Maximum)

10 / 500

Maximum Number of Switches Supported

256

Maximum Number of FortiAPs (Total / Tunnel Mode)

4,096 / 1,024

Maximum Number of FortiTokens

5,000

Maximum Number of Registered FortiClients

100,000

High Availability Configurations

Active / Active, Active / Passive, Clustering

System Performance — Optimal Traffic Mix

IPS Throughput

80 Gbps

System Performance — Enterprise Traffic Mix

IPS Throughput

30 Gbps

Dimensions and Power

Height x Width x Length (inches)

8.8 x 17.2 x 27.3

Height x Width x Length (mm)

222 x 437 x 695

Weight

100.8 lbs (45.8 kg)

Form Factor

5 RU

AC Power Supply

100–240V AC, 50–60 Hz

DC Power Supply (FG-3980E-DC, FG-3960E-DC)

-48–60V

Power Consumption (Average / Maximum)

960 / 2110 W

Current (Maximum)

21.1A@100V,
8.8A@240V

Heat Dissipation

7,200 BTU/h

Redundant Power Supplies

Yes, Hot Swappable

Operating Environment and Certifications

Operating Temperature

32–104°F (0–40°C)

Storage Temperature

-31–158°F (-35–70°C)

Humidity

10–90% non-condensing

Noise Level

63 dBA

Operating Altitude

Up to 7,400 ft (2,250 m)

Compliance

FCC Part 15 Class A, C-Tick, VCCI, CE, UL/cUL, CB

Certifications

ICSA Labs: Firewall, IPsec, IPS, Antivirus, SSL-VPN;
USGv6/IPv6

NEBS Certified

–
